Binary input data station AHD-PS 30

30 inputs

Collection, processing and control of discrete signals

Product Features

Profile module for installation on standard profile rails in consoles, control panels or control cabinets
Degree of protection IP 20
30 input channels for acquisition of binary signals (potential free contacts resp. system voltages switched by contacts or transistors, etc.)
LED-indicator per input channel, activated at closed contact
Suppression of influences applied by shifting of supply potential by means of current controlled input circuits
Test push button for short to earth and ground detection
3 serial outputs for data transmission to external devices (i.e. data station AHD-SAS 15, central unit AHD 882, Kompakt EDA 47, etc.)
Connection via pluggable terminal list
Type approved by Germanischer Lloyd, Lloyd´s Register of Shipping and Bureau Veritas (further approvals on demand)

Documentation

Description

The binary data station AHD-PS 30 is applied within alarm, monitoring and control systems for acquisition of binary signals.

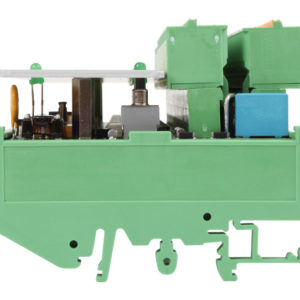

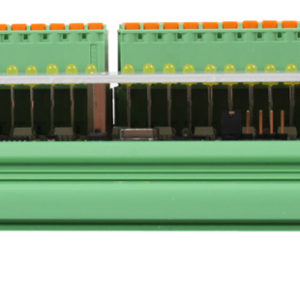

Drawings and photos AHD-DPU 9

01big
02big
03big
04big
