Operating Panel for Navigation Lights Control and Monitoring System AHD-DPS02 B21

for 21 Lamps

Control and management of navigation and signal and distinctive lights

Product Features

  • Compact design for installation in consoles, control panels or control cabinets
  • Front dimension 144mm x 144mm
  • Degree of protection IP 22 (front, with front cover IP 54)
  • Individual operating push button for switching on and off with integrated LED for status indications of max. 21 navigation and signal lights
  • Replaceable text field for designation of lights
  • Additional LED-indications for power supply and system faults as well as lamp lifetime warning message (e.g. 2000 hours remaining)
  • Automatic dimming of LED-indications, adjustable
  • Integrated alarm buzzer
  • Push button for acknowledgement of acoustic alarm with lamp test function
  • Push button “Enable” for selection of operating authorization for the unit
  • Serial interfaces for connection to basic module AHD-DPS02 G14 and one extension module AHD-DPS02 A07
  • Type approved by Germanischer Lloyd, Lloyd´s Register of Shipping, Russian Maritime Register of Shipping, American Bureau of Shipping (further approvals on demand)

Documentation

Description

The operating panel AHD-DPS02 B21 is a microprocessor-controlled device for conventional operation and status indication of max. 21 navigation and signal lights.

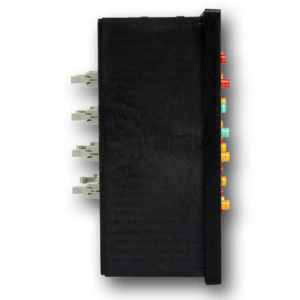

Drawings and photos AHD-DPS02-B21
