Basic Module for Navigation and Signal Light Control and Monitoring System AHD-DPS02 G14

14 lamps

Control and management of navigation and signal and distinctive lights

Product Features

  • Profile module for installation on standard profile rails in consoles, control panels or control cabinets
  • Degree of protection IP 20
  • Control and monitoring of 14 lamp circuits, extendable by max. 4 extension modules AHD-DPS02 A07 for a total of 42 lamp circuits
  • Input channels are short-circuit-proof and maintenance-free, alarm message on short circuit or wire breakage
  • In case of shutdown of electronics, the lamp function remains operative
  • Storage of operating time and switching cycles per lamp circuit with message at reaching end of life-time of lamps (required by regulations for LED-lamps)
  • Versions available for 115 or 230VAC as well as 24VDC
  • Power supply with permanently monitored mains and emergency power supply, selectable by means of external selector switch
  • Serial interface for connection of conventional operation panel
  • CAN-bus and RS485/RS422 interface available for data communication with PC for control and monitoring by means of additional AHD-DPS02 Com-Module
  • Type approved by Germanischer Lloyd, Lloyd´s Register of Shipping, Russian Maritime Register of Shipping, American Bureau of Shipping and Croatian Register of Shipping (further approvals on demand)

Documentation

Description

AHD-DPS02 G14 is a microprocessor-controlled device used as a basic module with 14 channels for control and monitoring of navigation and signal lights, with conventional or LED-lamps, on board ships.

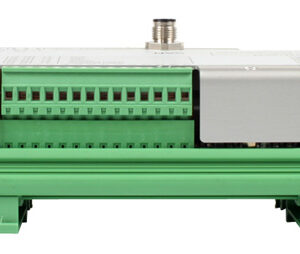

Drawings and photos AHD-DPS02 G14
